Product Introduction
This series of machine uses transistor circuit control, with the characteristics of low cost, simple operation, easy to use. Mainly used for bottle with threaded plastics, glass bottle of bottle etc. Nonmetal induction membrane sealing operation. Applicable to large and medium sealing job. Batch continuity, Not suitable for acid. Alkalinity. High humidity and dust more harsh environments (such as pesticides. SAN, etc.) for a long time. These series machines are suitable for single homework, do not use in line connected.
Technical Parameter
Electrical source: AC220V±10% 50Hz
Reactive rate : 1800W
Current work more than eight :≤9(A)
Work: continuous conveying
Cooling way: forced cooling fan
Type: console
Case materials: stainless steel aluminum
Sealing diameter : φ 50 ~ φ 130 mm
Apply high: 40 ~ 300 mm
Sealing speed: 0-12m/min
Size: 155*50*135 cm
weight: 72kg
Reactive rate : 1800W
Current work more than eight :≤9(A)
Work: continuous conveying
Cooling way: forced cooling fan
Type: console
Case materials: stainless steel aluminum
Sealing diameter : φ 50 ~ φ 130 mm
Apply high: 40 ~ 300 mm
Sealing speed: 0-12m/min
Size: 155*50*135 cm
weight: 72kg

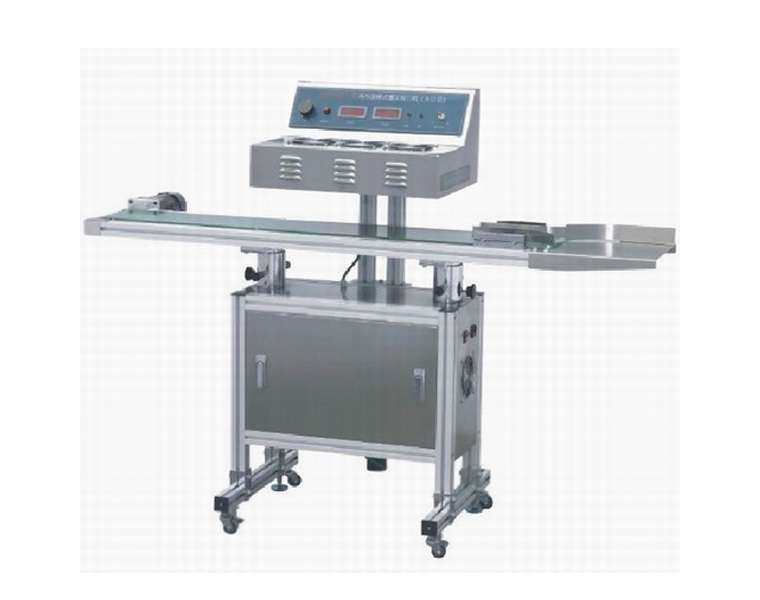

Figure Photos
Due to the production batch, the specific model is different, the above of pictures are for reference only, for further details you can contact our sales staff to carry out the specific verification .
